Audi RS3 8YA/8YS Aftermarket Intermediate Service Kit – DNWC, DXHB

Description

INTERMEDIATE SERVICE KIT

Elevate maintenance for your Audi A3 RS3 8YA 8YS with the DNWC DXHB engine code-compatible Intermediate Service Kit. This complete bundle includes a sump plug and washer, top-grade motor oil, oil filter, air filter and cabin filter. Create peak performance, durability, and trustworthiness with this package, or purchase it without motor oil or as separate parts for added convenience.

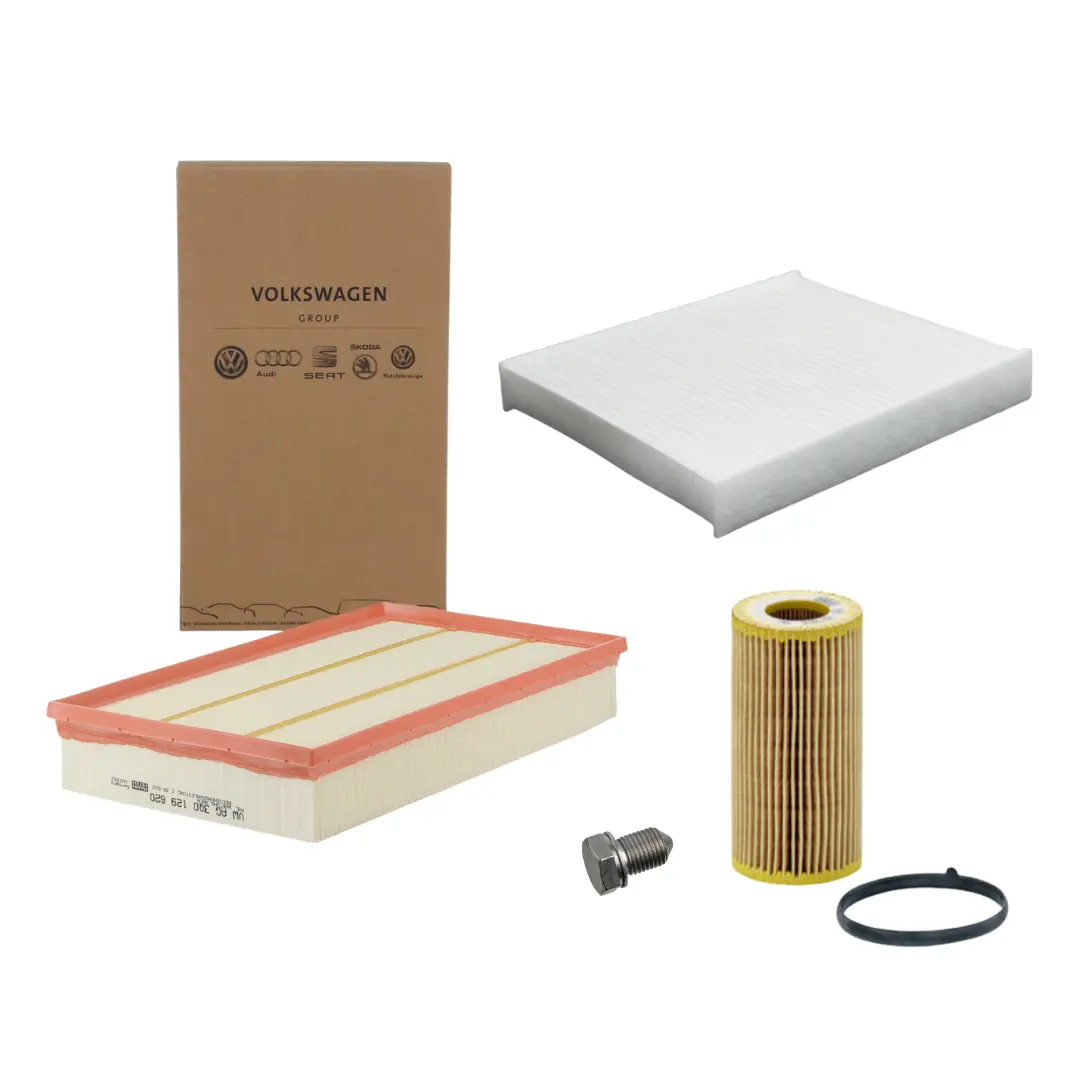

Kit includes:

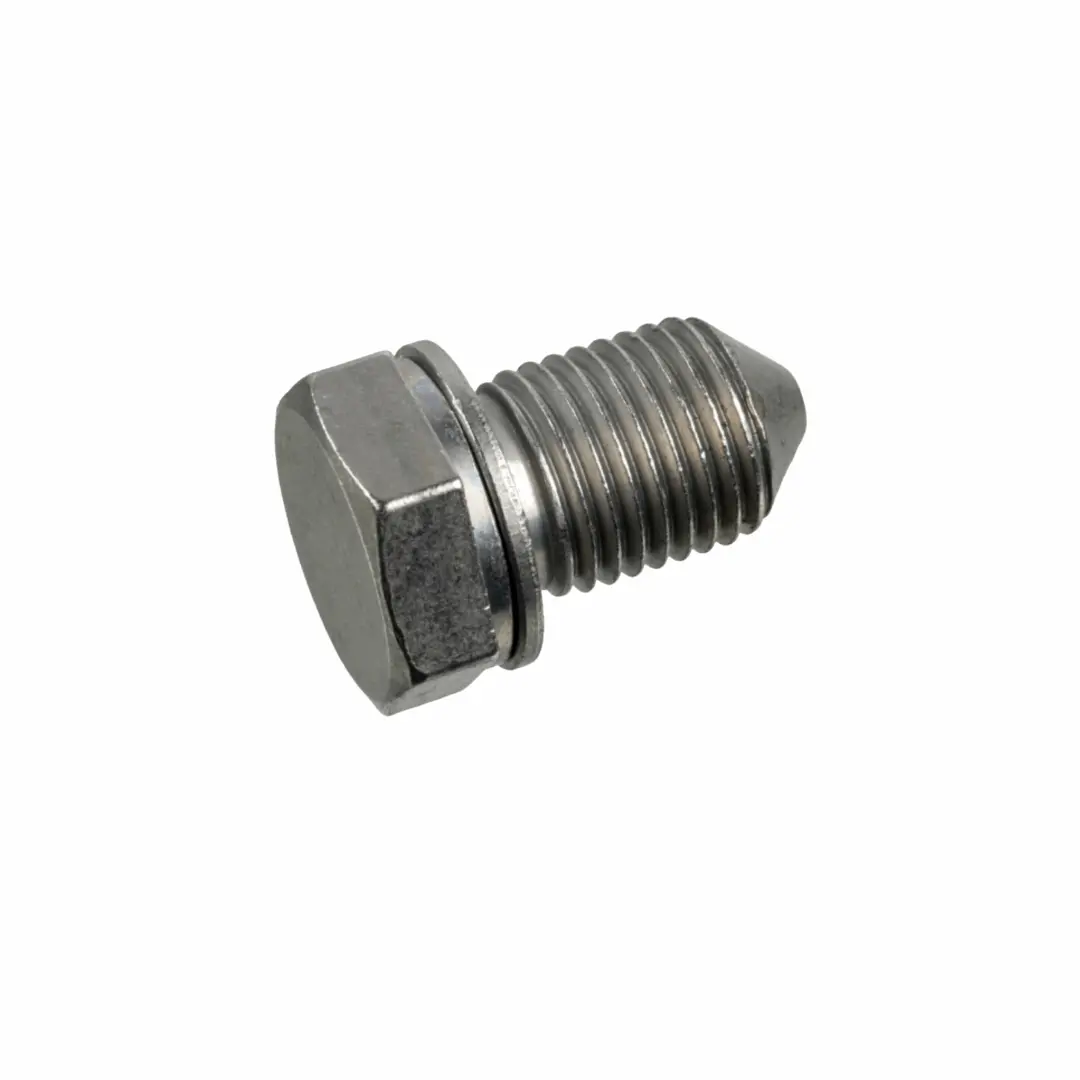

Sump Plug and washer

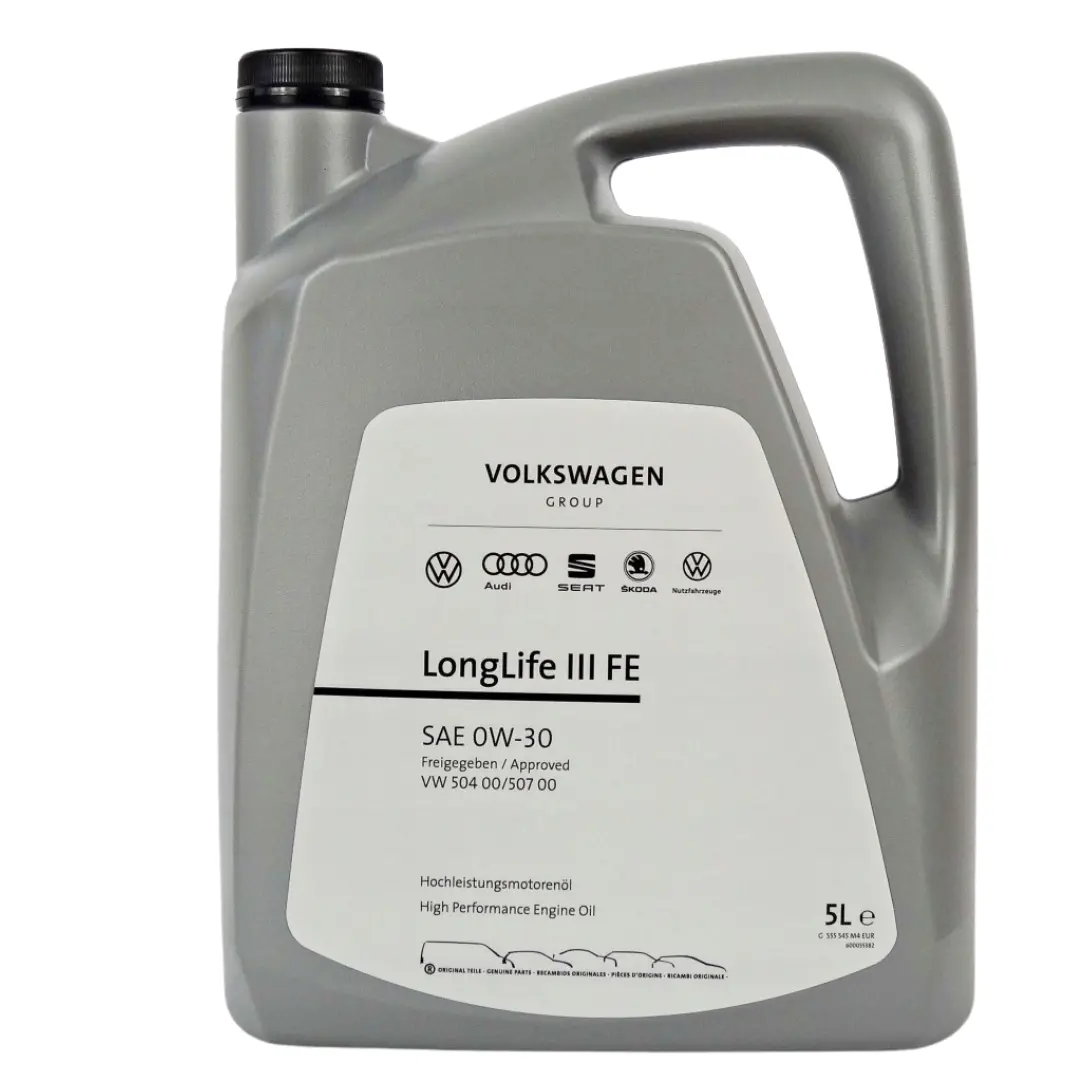

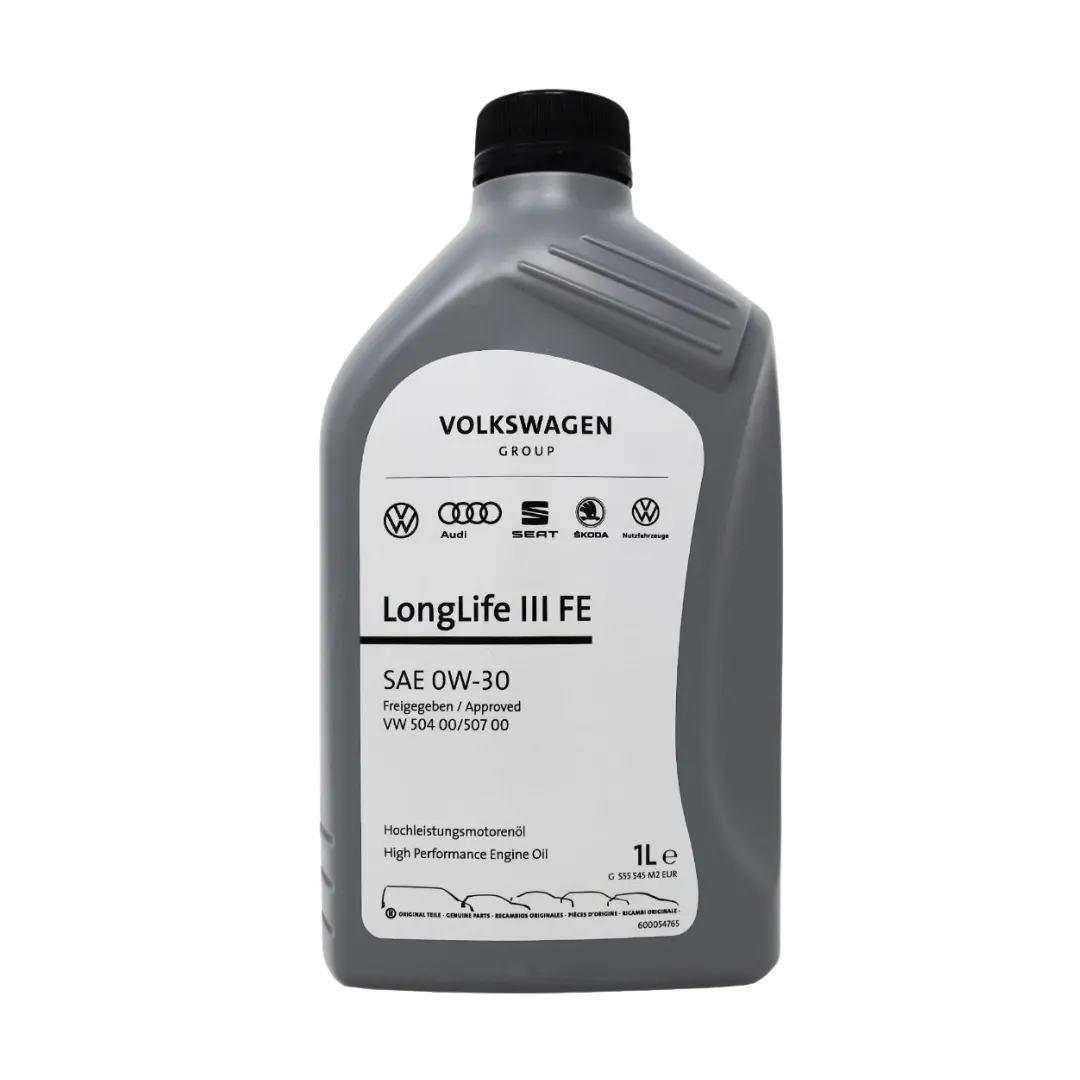

Motor Oil

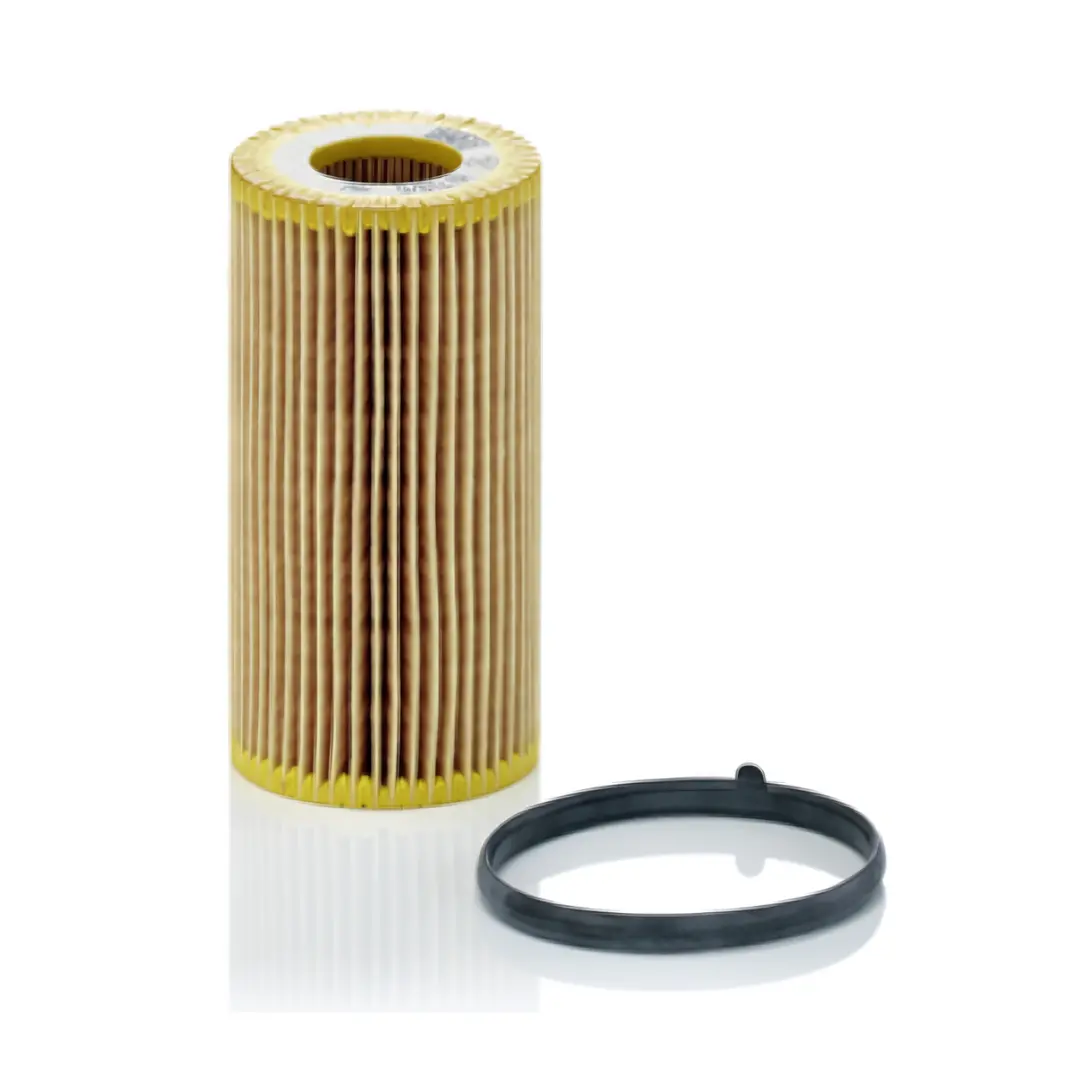

Oil Filter

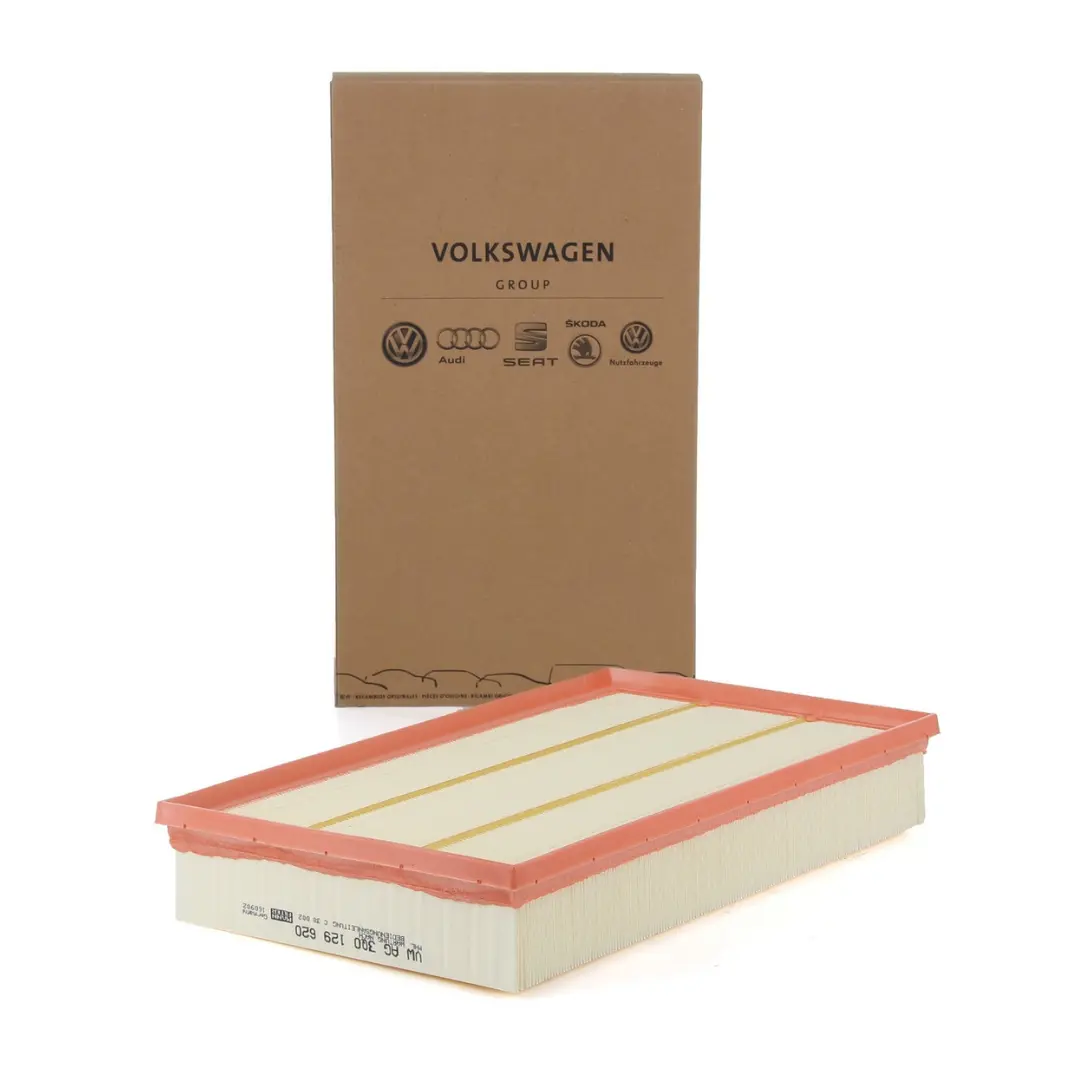

Air Filter

Cabin Filter

AUDI A3 (8YA, 8YS) RS3 (8YA,S) – kw 294 – 400 hp

(DNWC, DXHB – 2480 ccm – 07/21)

 *available without motor oil or as individual parts

*If you are choosing the full kit with labour, you will need to select collect order at check out. We will call you to confirm the appointment for the service.

Other Vehicle Information:

Engine

• Engine oil

  SAE 0W-30VW 504 00

•  Engine sump, including filter  7.1 (l)
•  Engine oil drain plug (Renew the sealing washer) 25 (Nm)

Cooling system

• Coolant

  TL-VW 774L (G12EVO)

• Coolant (De-ionised water with 40% anti-freeze)

  -Above -25 °C

• Coolant (De-ionised water with 50% anti-freeze)

  -Above -36 °C

•  Cooling system  10.0 (l)

Brake system : General data

• Brake fluid (Preferred lubricant specification)

  VW 501 14

• Brake fluid (Alternative lubricant specification)

  DOT 4

•  Brake system (Automatic transmission) 1.0 (l)
•  Brake system (Dual-clutch transmission) 1.0 (l)
•  Brake system (Manual transmission) 1.15 (l)

Dual-clutch transmission, 0DL, 7-speed

• Dual-clutch transmission fluid

  VW G 052 182 A2

•  Dual-clutch transmission
•  Initial filling  6.9 – 7.1 (l)
•  Gearbox refill  5.5 (l)
•  Plug location (Drain plug),


Transfer box, 0CP

• Gear oil

  SAE 75W-90VW G 052 145

•  Transfer box (Filled for life) 0.8 (l)
•  Plug location (1 – Filler plug; 2 – Drain plug),

Rear differential, Torque vectoring differential, 08E

• Gear oil

  VW G 060 190 A2

•  Differential, rear  0.6 (l)
•  Plug location (1 – Filler plug; 2 – Drain plug),


Hydraulic differential control unit, Torque vectoring differential, 08E

ATF

VW G 055 515 A2
