Sale!
Go Ball Valves Actuated Electric Flanged Ansi 150# 3 Way Bls3fae 1
Go Ball Valves Actuated Electric Flanged Ansi 150# 3 Way Bls3fae 2
Go Ball Valves Actuated Electric Flanged Ansi 150# 3 Way Bls3fae 3

BLS3FAE Electric Actuated 3-Way Flanged Ball Valve – ANSI 150, 1/2″ to 4″

Price range: $86.57 through $99.22

Quantity
SKU: N/A Category: Brand:

Description

GO Ball Valves Actuated Electric Flanged ANSI 150# 3 Way BLS3FAE

Overview

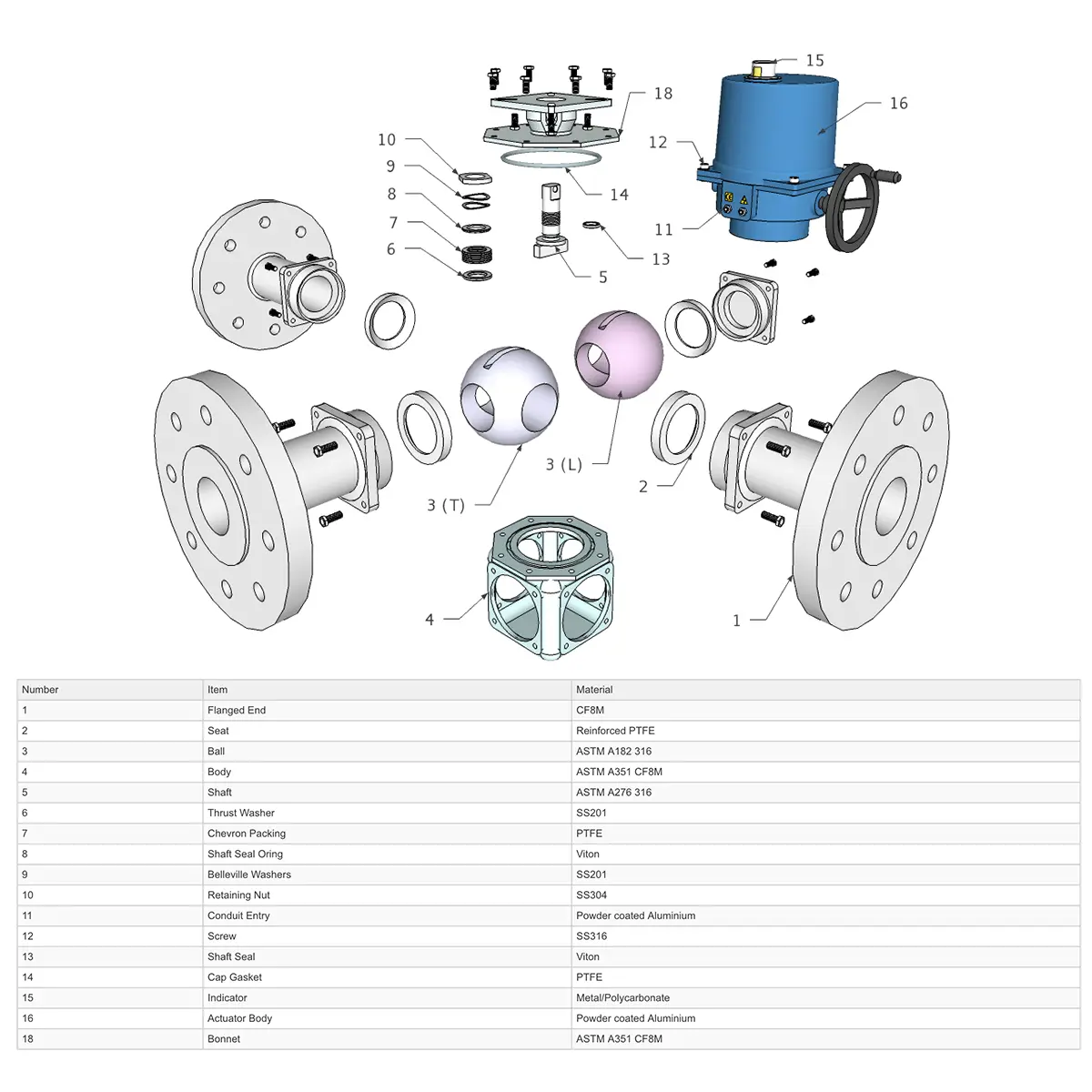

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and an electric actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Powder coated die aluminium electric actuator with visual indicator, extra limit switches and a manual override.

Explore more from our collection.

Additional information

Size

1/2" (15mm), 3/4" (20mm), 1" (25mm), 1 1/4" (32mm), 1 1/2" (40mm), 2" (50mm), 2 1/2" (65mm), 3" (80mm), 4" (100mm)
Body Material

SS316, Cast Steel
