Description
Bugeyeguys Exclusive!
WORKS WITH POSITIVE AND NEGATIVE GROUND CARS
You really should have a working fuel gauge on your Spridget! With just a 7.2 gallon tank, it’s easy to run out if your gauge doesn’t work.
We have solutions to make sure your gauge works!
Unfortunately, non-working fuel gauges are quite common on Sprites. Sometimes it’s the sender… we fix and replace lots of those… but often the gauges are missing, broken, or mis-matched to the fuel tank sender and therefore not working.
Now, we have a new gauge available that works with all Spridgets through mid-1967 (after mid-1967 you need a damped gauge and this one will not work with those later senders). No programming needed… just plug and play. And they look like they belong with a type- face very similar to the original. These gauges are a welcome addition to any restored dashboard.

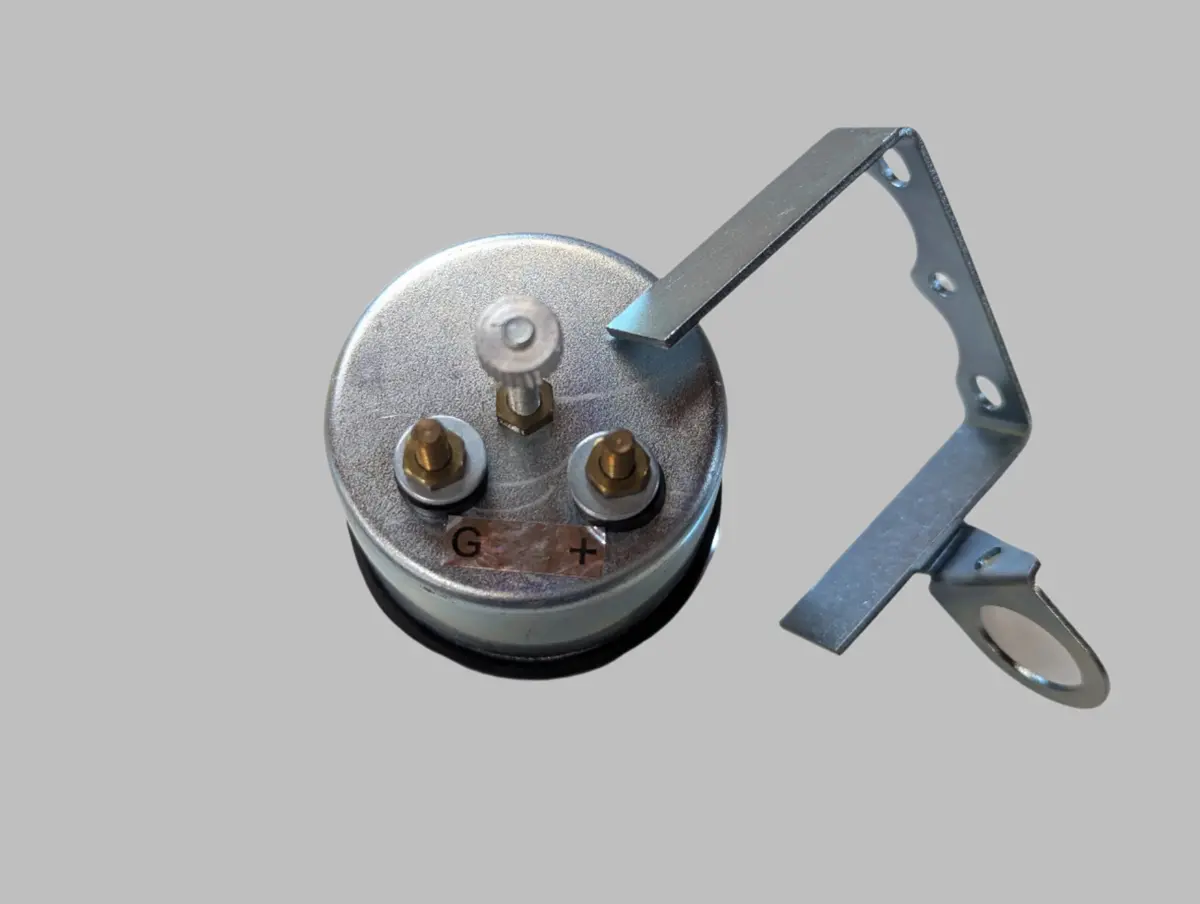

No one else sells this gauge and bracket! We made a custom support for the gauge to ensure they mount easily for strength and longevity!
Restorer’s notes:
On Sprite MkII/Midget MkI, the fuel gauge went to a slightly different style with out the 1/4 & 3/4 markings, but the fuel sender is the same and this gauge will work for these cars as well. This gauge looks good in any Spridget up to 1967 (AH – MkIV # 72039 or MG – MkIII # 60459)
The original Bugeye fuel gauges have a different light socket, which you will need to convert to the plug-in type. We sell the correct gauge light socket, bulb, and crimp on bullet connector needed for this application! When installing this, we recommend putting a ring terminal on the negative wire to make an easy ground.
Note: This gauge diameter is 2-1/16″
