Go Ball Valves Actuated Double Acting Pneumatic Flanged Ansi 150# Full Bore Fire Safe 1
Go Ball Valves Actuated Double Acting Pneumatic Flanged Ansi 150# Full Bore Fire Safe 2
Go Ball Valves Actuated Double Acting Pneumatic Flanged Ansi 150# Full Bore Fire Safe 3
Go Ball Valves Actuated Double Acting Pneumatic Flanged Ansi 150# Full Bore Fire Safe 4
Go Ball Valves Actuated Double Acting Pneumatic Flanged Ansi 150# Full Bore Fire Safe 5

Go Ball Valve – Double-Acting Pneumatic Actuation, ANSI 150 Flanged, Full-Port, Fire-Safe Certified

Price range: $71.50 through $95.83

Quantity
SKU: N/A Category: Brand:

Description

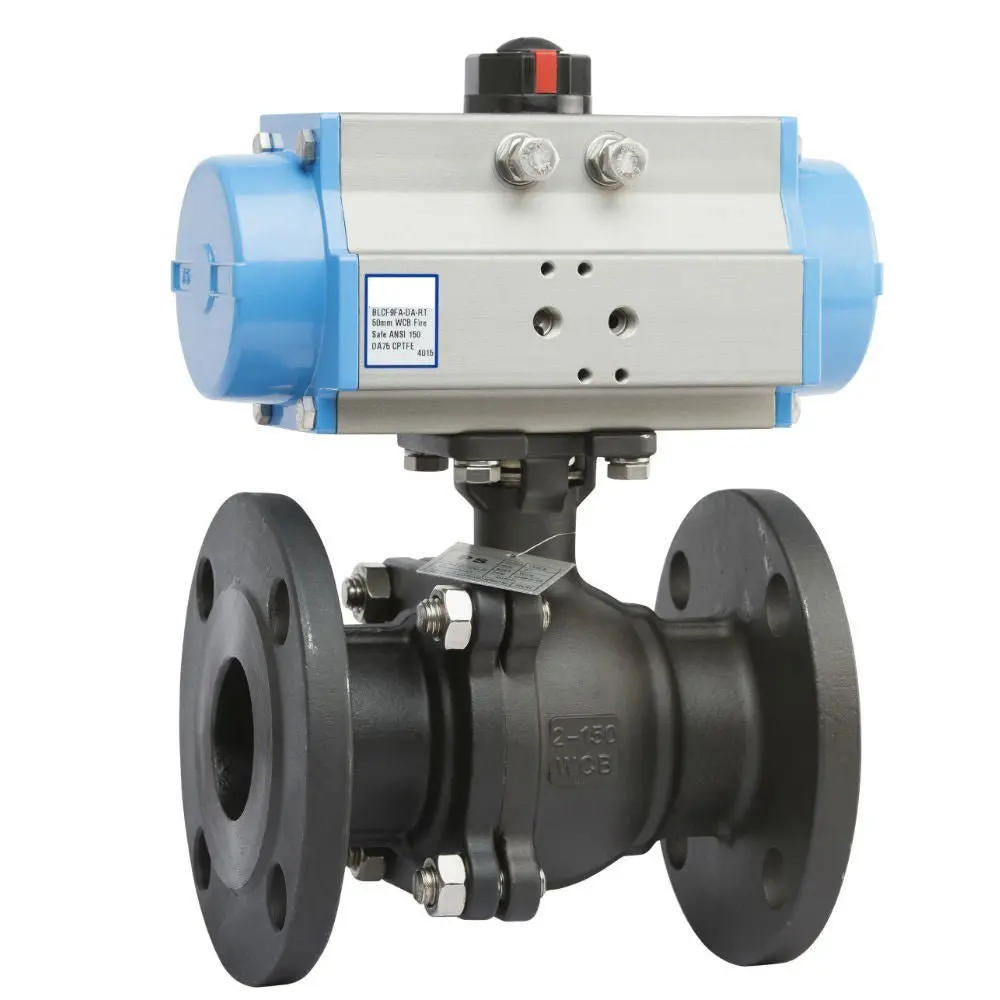

GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe

Overview

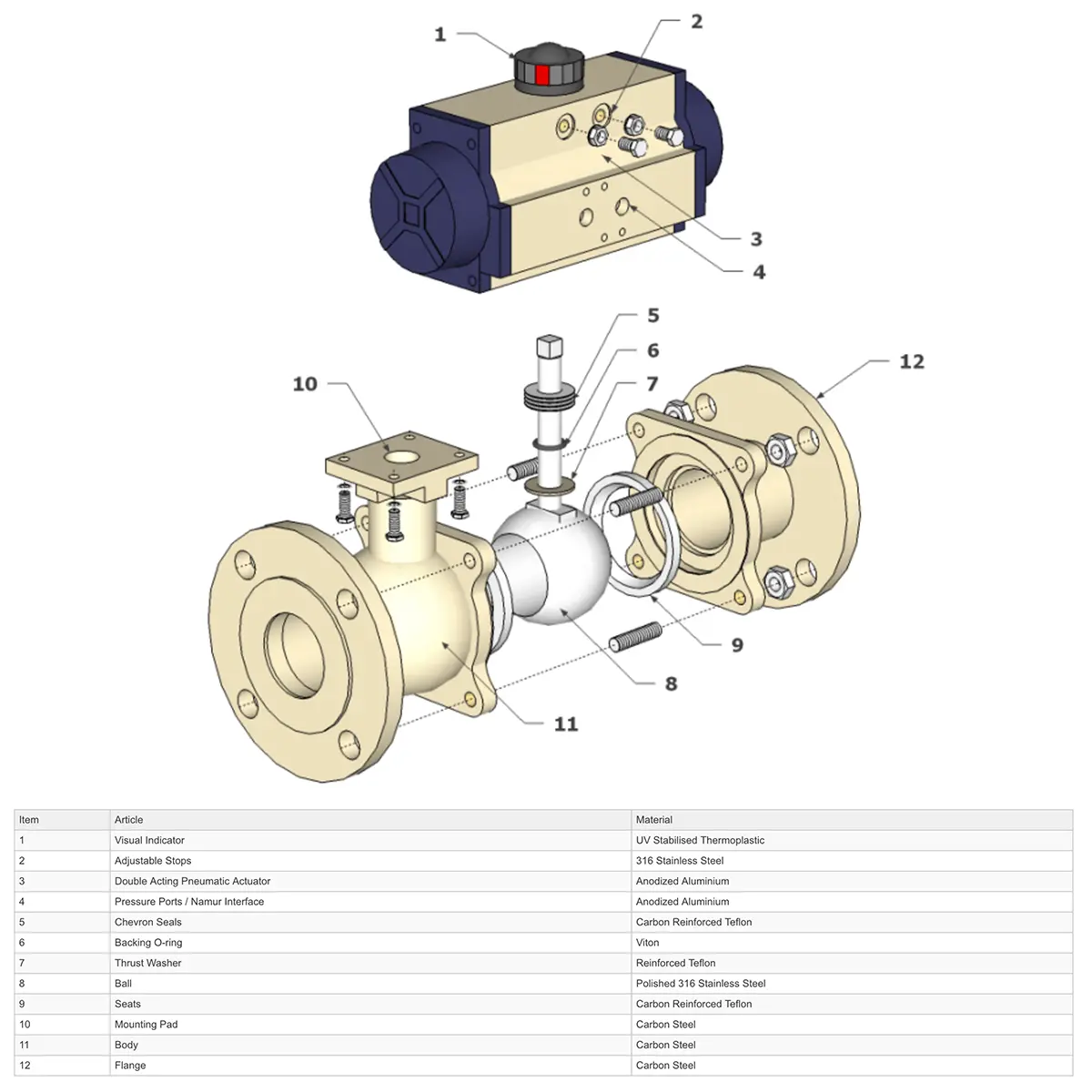

    High quality 316 Stainless Steel or Carbon Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.

    Explore more from our collection.

    Additional information

    Size

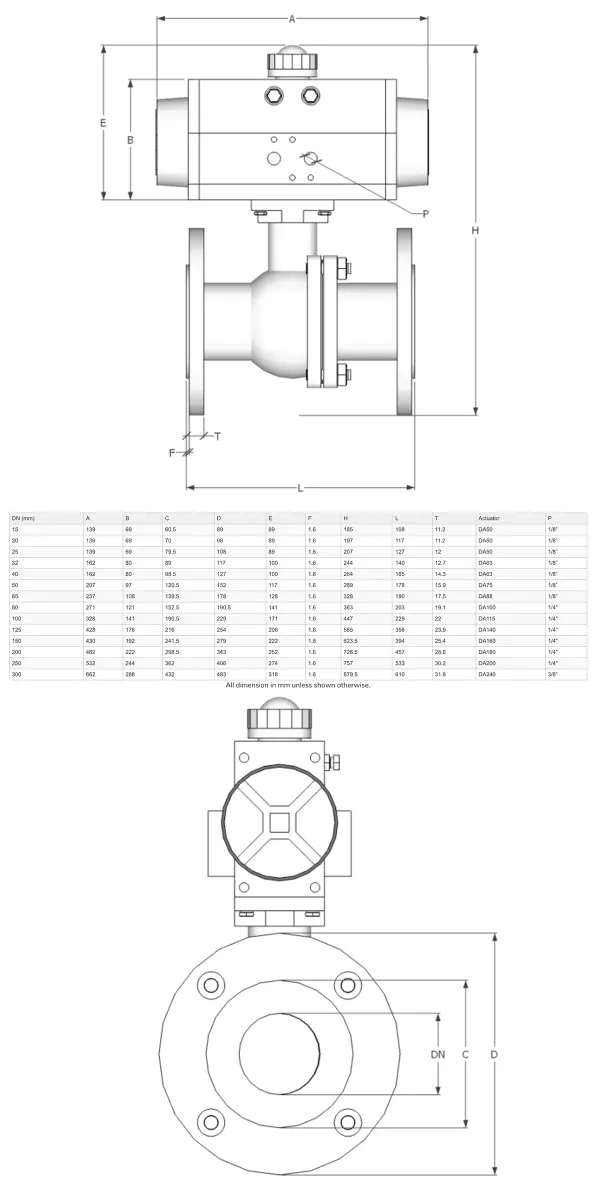

    1/2" (15mm), 3/4" (20mm), 1" (25mm), 1 1/4" (32mm), 1 1/2" (40mm), 2" (50mm), 2 1/2" (65mm), 3" (80mm), 4" (100mm), 5" (125mm), 6" (150mm), 8" (200mm), 10" (250mm)
    Body Material

    SS316, Cast Steel
