Oase BioSmart Gravity-Fed Pond Filtration Systems

Description

The BioSmart Gravity Filters are a multi-stage mechanical and biological filtration system in a compact package, designed for medium ponds or for ponds with moderate biological load (some fish).

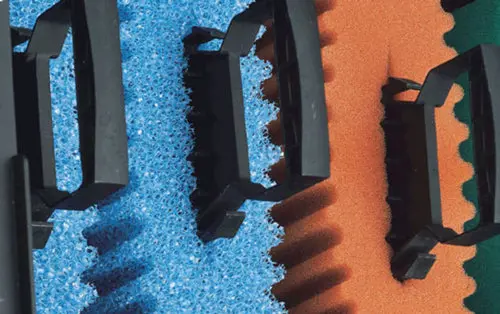

During biological filtration, the water is channeled through a series of filter foams that create a special environment by allowing the settling of beneficial bacteria. During this stage, harmful ammonia and nitrites are converted to nitrates, which support plant life in the pond.

BioSmart Filters are packed with features and filtration capacity. The high-surface area filter foams provide exceptional biological filtration capability in relation to its size.  With features like built-in cleaning mechanism and water temperature gauge make BioSmart Filters an excellent choice for smaller ponds with low fish load.

DISTINCT FILTER ZONES

BioSmart filters feature distinct zones that promote the settlement of the beneficial bacteria responsible for different phases of the nitrogen cycle, increasing the conversion of harmful ammonia in the pond.

BUILT-IN CLEANING MECHANISM

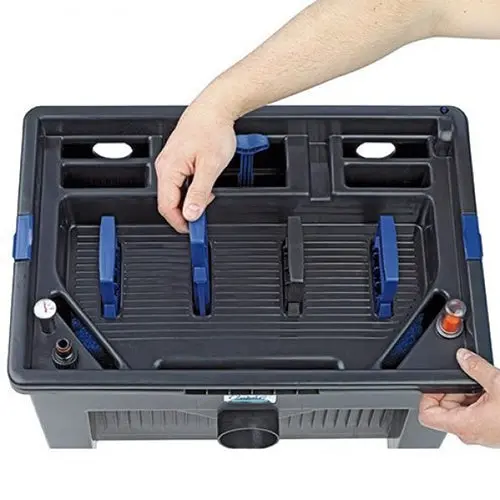

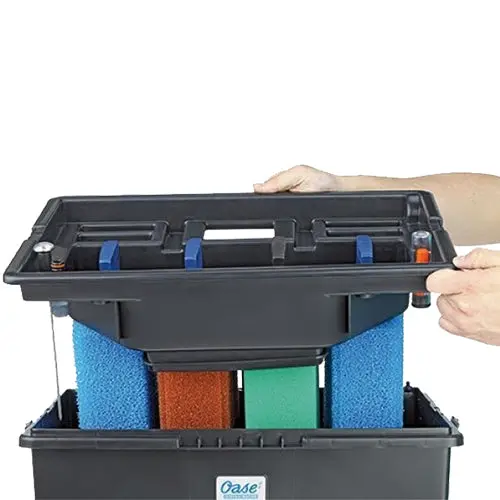

No need to remove or manually unclog the filter foams of the BioSmart filter. Simply shut off your pump, pull up on the built-in cleaning handles and drain the loosened debris through the built in drain. Quick to do and this retains the beneficial bacteria that keep your pond healthy.

ADVANCED FEATURES

The cleaning indicator, along with the temperature gauge and sludge drain are just some of the features that make BioSmart the most user-friendly and easy to maintain entry-level pond filter ever designed.

Specs	BioSmart 1600 UV	BioSmart 5000	BioSmart 10000
Dimensions (L x W x H)	11 x 14 x 16 in.	22 x 22 x 16 in.	30 x 22 x 16 in.
Operating Voltage	110-120V / 60 Hz	N/A
Power Consumption/UVC-Wattage	12W / 9W	N/A
Power Cable Length	16 ft.	N/A
Minimum Flow Rate	800 GPH	1600 GPH	1600 GPH
Maximum Flow Rate	Up To 1200 GPH	Up To 2700 GPH	Up To 3600 GPH
Input Connections	1, 1 1/4, 1 1/2 in.	3/4, 1, 1 1/4 in.
Outlet Connections	2 3/4 in.	2 1/2 in.
Sludge Drain Connection	N/A	2 in.
Head Height	7 ft.	N/A
Max Pond Size (No Fish)	1600 Gal	5000 Gal	10000 Gal
Max Pond Size (Small Fish)	800 Gal	2500 Gal	5000 Gal
Max Pond Size (Koi)	400 Gal	1250 Gal	2500 Gal
Warranty	One Year	Three Years	Three Years
