Sale!
Go Ball Valves V Port Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore Blvsr 1
Go Ball Valves V Port Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore Blvsr 2
Go Ball Valves V Port Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore Blvsr 3

V-Port Actuated Ball Valve – Spring-Return Pneumatic Operation, ASTM A351 CF8M (316 SS), Three-Piece Full-Port Construction

Price range: $75.02 through $94.05

Quantity
SKU: N/A Category: Brand:

Description

GO Ball Valves V Port Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore BLVSR

Overview

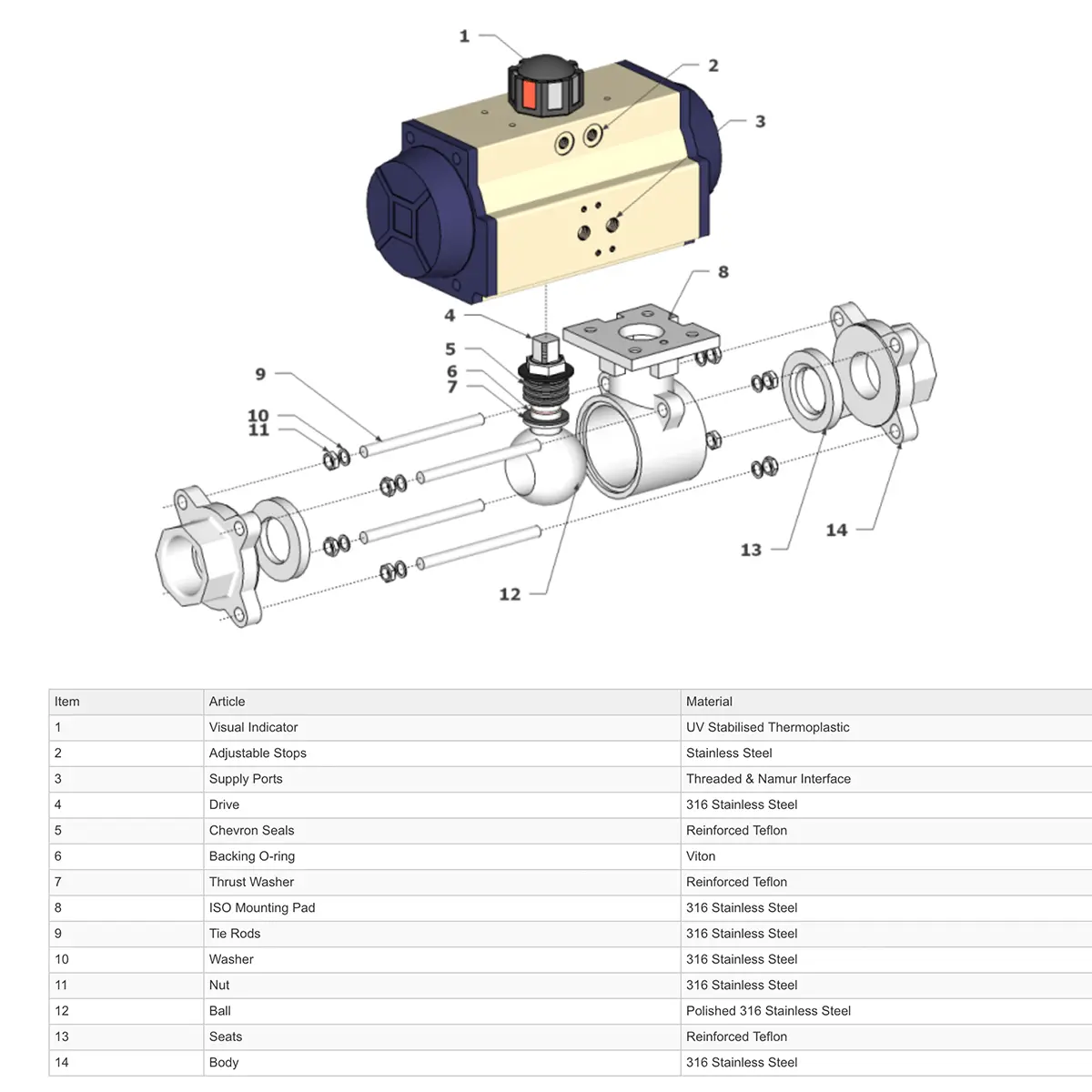

High performance 3 piece full bore 316 Stainless Steel V Port Ball Valve with BSP threaded connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.

Explore more from our collection.

Additional information

Size

1/2" (15mm), 3/4" (20mm), 1" (25mm), 1 1/2" (40mm), 2" (50mm), 3" (80mm), 4" (100mm)
